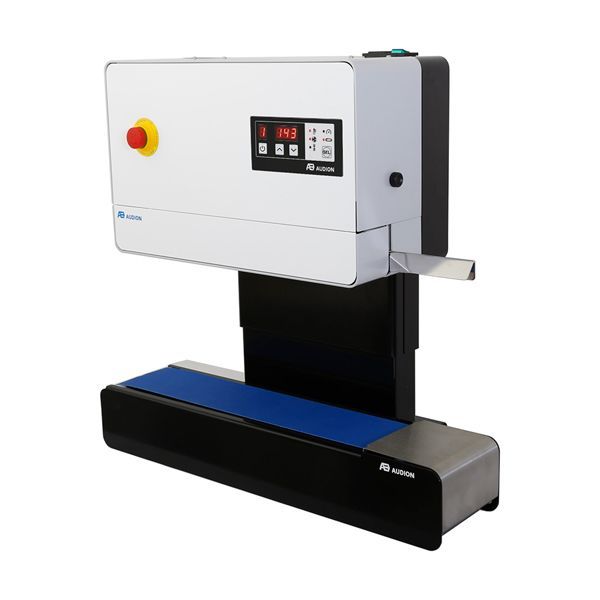

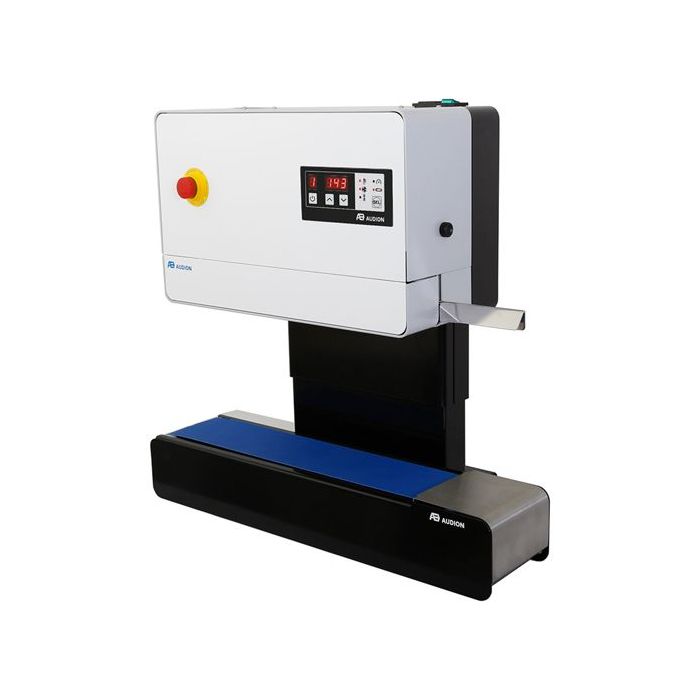

All in sealer D545 AV

On this tabletop continuous sealer, pouches are sealed in a standing position. The standing position is ideal for powders, liquids or solid products that would spill if sealed with the pouches lying flat. The temperature, running speed and cooling (by means of a special fan) are all easily adjustable via a digital control panel. The D 545 AV can be programmed with up to 9 pre-set seal settings. It is also possible to seal header cards with the D 545 AV.
The sealer is electrically adjustable in height with regard to the optional conveyor belt which allows for interchanging multiple sizes of stand up pouches.

Characteristics:

Seal length	Unlimited
Seal width	10 mm
Thickness of the pouch	2x20 - 2x120 micron
Bag height	135 - 430 mm
Max bag flap lenght	45 mm (above seal)
Seal temperature	0 - 250°C
Suited materials	Cellophane, pp and all laminated bags
Throughput speed	up to 10m per minute
Machine weight	44.2 kg
Dimensions	673 x 355 x 502/802 mm
Power supply	230V – 500W
Power cable length	2.0 m
IP value	IP20

Specifications

Weight (kg)	45.000000
Machine type	Continuous, band sealer, semi-automatic
Model	Tabletop
Seal length	Unlimited
Seal width	10 mm
Max. speed	10 meters per minute
Max. pouch length	430 mm
Max. pouch flap length	45 mm
Film type	Cellophane, Laminate, Ready Made Bags, PP (Polypropylene), PE (Polyethylene)
Film thickness	2 x 25 - 2 x 200 micron
Product input	Right to left
Conveyor width	112 mm
Conveyor adjustment	70 mm forward
Max. bag weight on conveyor belt	5 kg
Covering	Epoxy
Machine weight	44 kg
IP value	IP20
