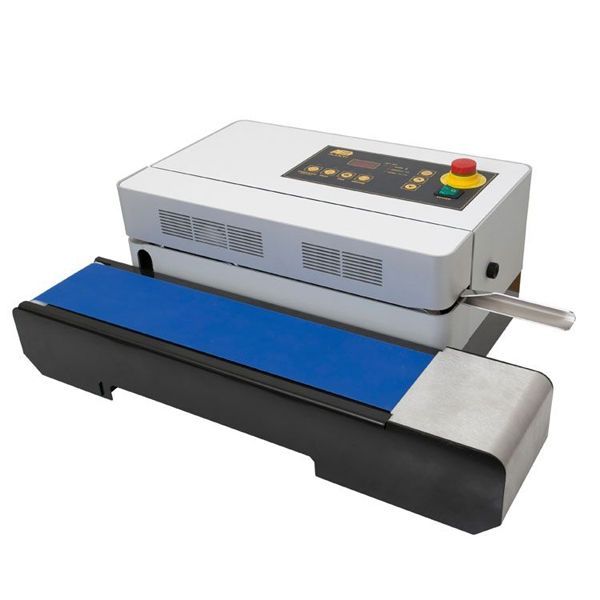

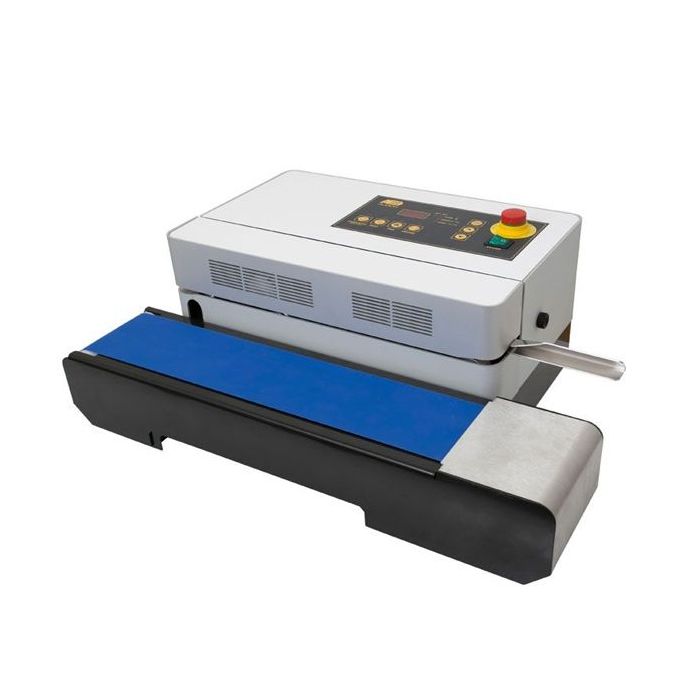

All in sealer D545 AH

On this tabletop continuous sealer, pouches are sealed lying flat. The temperature, throughput speed and cooling (by means of a special fan) are all easily adjustable via an digital panel.

The integrated conveyor belt is 112 mm wide and 670 mm long and can be adjusted both in height and forwards (see photos). This allows you to seal bags of different lengths, widths and thicknesses. Other than this the sealer has 9 pre-set options which can be programmed.

Characteristics:

Seal length	Unlimited
Seal width	10 mm
Thickness of the pouch	2x20 - 2x120 micron
Bag height	120 - 325 mm
Max bag flap lenght	45 mm (above seal)
Seal temperature	0 - 250°C
Suited materials	Cellophane, pp and all laminated bags
Throughput speed	up to 10m per minute
Machine weight	28.8kg
Dimensions	675 x 460 x 255 mm
Power supply	230V – 550W
Power cable length	2.0 m
IP value	IP20

Specifications

More Information
Product ID	1284
Sealers	The most compact All-In-One belt sealer
Machine type	Continuous, band sealer, semi-automatic
Model	Tabletop
Seal length	Unlimited
Seal width	10 mm
Max. speed	10 meters per minute
Film type	Cellophane, Laminate, Ready Made Bags, PP (Polypropylene), PE (Polyethylene)
Film thickness	2 x 20 - 2 x 120 micron
Product input	Right to left
Conveyor width	112 mm
Conveyor adjustment	70 mm forward
Max. bag weight on conveyor belt	5 kg
Covering	Epoxy
Machine weight	34 kg
IP value	IP20
