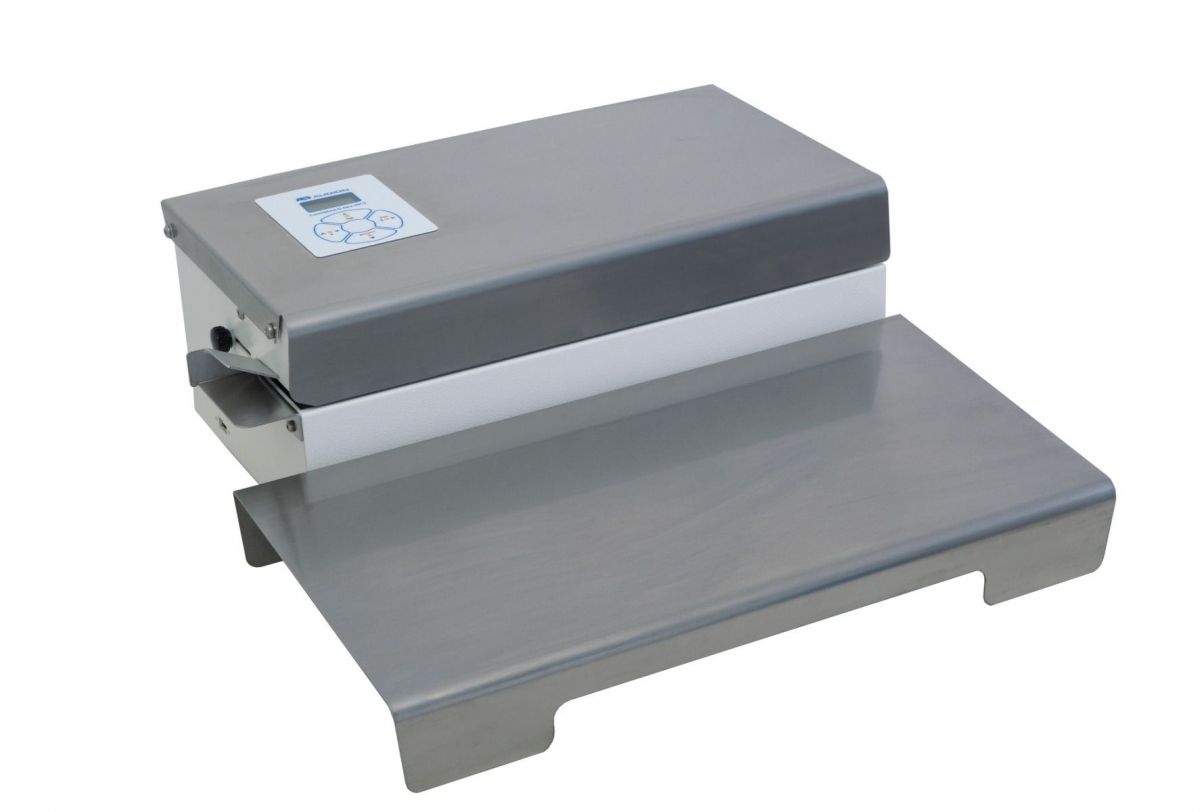

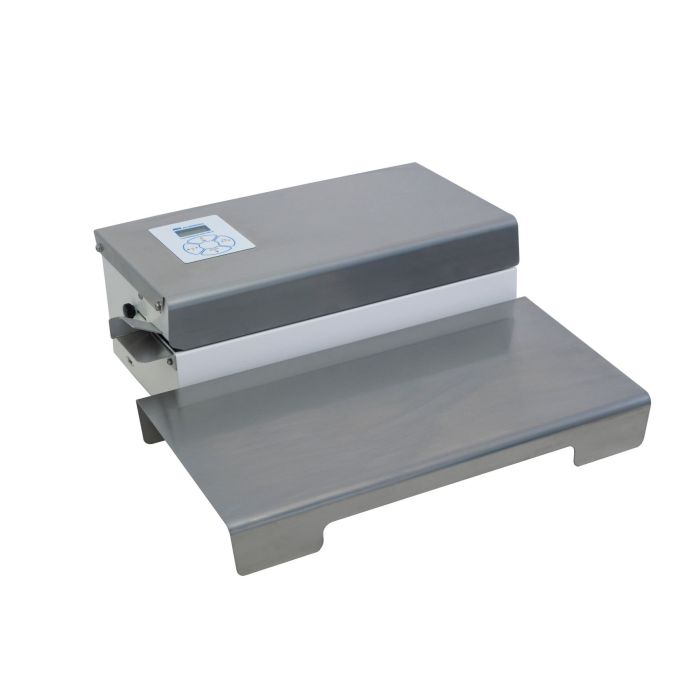

Audion rotary heat sealer D662 MV

SKU: 2305

Information

Looking for a simple and fast sealing solution?

The D662 MV continuous sealer is perfect for easy and quick sealing of light packages. The time and heat are adjustable and because of the continuous element you can quickly seal a package.

Including support table in stainless steel 304, length ± 480 mm)
Sealer dimensions: 473 x 235 x 181 mm.
Temperature adjustable up to 220°C.
Data can be exported to PC or laptop via USB stick.
Sealing width 12.5 mm (multi lines).

Specifications

More Information
Product ID	2305
Machine type	Rotary sealer, semi-automatic
Model	Tabletop
Seal length	Unlimited
Seal width	12.5 mm multiline seal
Seal temperature alarm	Setting range 10 - 220 °C; Tolerance +/-5°C (default); Tolerance range: +/-(0–99) °C; Accuracy: +/-1%
Max. speed	8 meters/minute (fixed)
Seal speed alarm	Reference speed: 8,0 m/min. (fixed); Tolerance: – 1,0 m/min. / + 0,5 m/min. (default); Threshold: Min. 7,0 m/min. / Max. 8,5 m/min (default); Tolerance range: +/- (0,0 - 9,9) m/min
Seal force	85 N (fixed)
Seal force alarm	Reference force: 85N (fixed); Tolerance: - 15 N / + 17 N (default); Threshold: Min. 70 N / Max. 102 N (default); Tolerance range: +/- (0 – 99) N
Film type	Preformed sterile barrier systems (EN 868-5) like Paper/PP, Tyvek® and Gusset. Paper bags (EN 868-4), Alu laminates, PA/PE and PP (OPP/BOPP)
Film thickness	2 x 100 micron
Covering	Epoxy, Stainless steel
Dimensions	473 x 235 x 181 mm
Pedal operated	No
Knife	No
Control panel	LCD display with 2 lines for 8 characters, membrane keyboard
Communication interface	USB port
Machine weight	12.5 kg
Power consumption	500 W
Voltage	115/230 V – 1 P – 50/60 Hz
